~$ Dissecting the KnightCTF Reverse Engineering challenges!

Posted on Jan. 30th, 2022. | Est. reading time: 5 minutes

Tags: CTFWrite Up

Write-ups

Baby Shark (50 points)

During my holiday in Bahamas, I met a baby shark. The shark wanted to sing me something but couldn’t. Can you sing that for me?

Flag Format: KCTF{SomE_T3xT_h3r3}


Once the JAR is downloaded, go to javadecompilers.com, and upload it there.

We obtain a ZIP which we then unpack, revealing the following file structure:

File tree File tree

We can see a few interesting Java files, which we’ll get into quickly.

The first is Flag.java, it is not very interesting:

A few false flags. A few false flags.

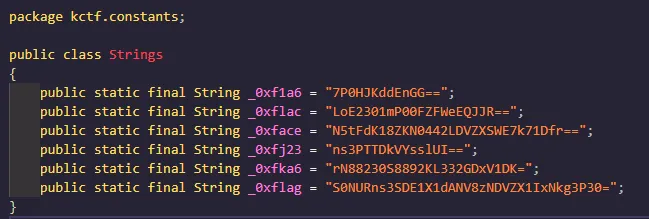

In Strings.java we can see what resembles strings that are Base64 encoded:

A few false flags. A few false flags.

If we throw these in a Base64 decoder, the last gives us the flag: KCTF{7H15_W@5_345Y_R16H7?}


Droid Flag (100 points)

One needs to decompile the provided APK, and understand what the decompiled code does, to retrieve the flag.

Once the ZIP is downloaded, extract the APK contained within, then go to javadecompilers.com, and upload it there.

We obtain a ZIP which we then unpack, revealing the following file structure:

Decompiled file tree. Decompiled file tree.

We can see a few interesting Java files, which we’ll get into quickly.

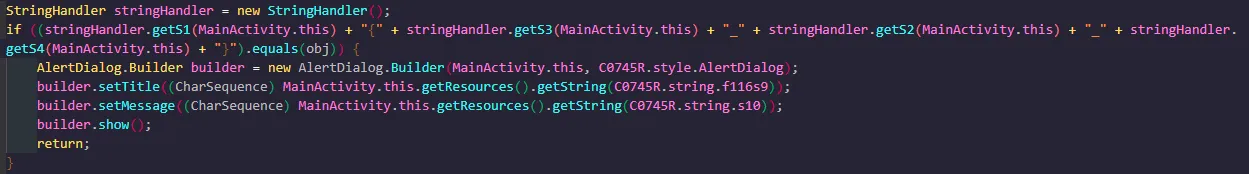

The first is MainActivity.java, it contains a few interesting lines:

The code for MainActivity.java. The code for MainActivity.java.

We can see that this code calls a number of functions in the StringHandler class from the StringHandler.java file, in the following order:

$(S1){$(S3)_$(S2)_$(S4)}

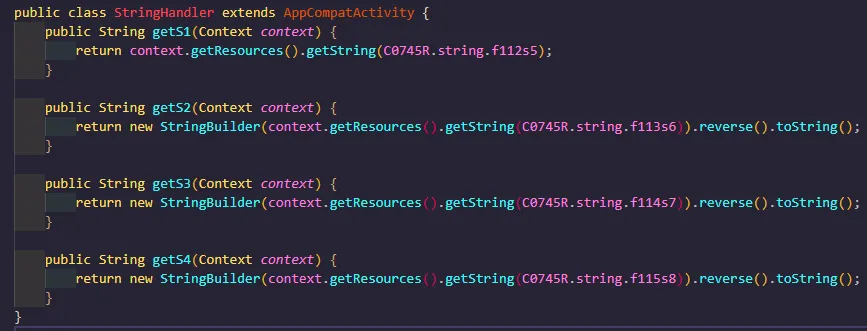

The code for StringHandler.java. The code for StringHandler.java.
  • S1 gets a value defined in class C074SR where the identifier is f112s5
  • S2 gets a value defined in class C074SR where the identifier is f113s6
  • S3 gets a value defined in class C074SR where the identifier is f114s7
  • S4 gets a value defined in class C074SR where the identifier is f115s8

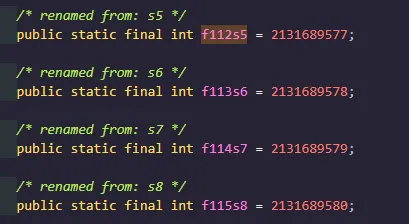

Those values are:

The code for class C0754RCode. The code for class C0754RCode.

We look for any identifier with those numbers (grep is useful), and find some in public.xml:

The public.xml file. The public.xml file.

We then look for the names provided in strings.xml:

The strings.xml file. The strings.xml file.

In StringHandler.java we see that the values for S2, S3 and S4 are then reversed, which makes the final flag:
$(S1){$(S3)_$(S2)_$(S4)} -> KCTF{aNdR01D_s1MpL3_r3V3rS3}
